Thermal Imaging Devices

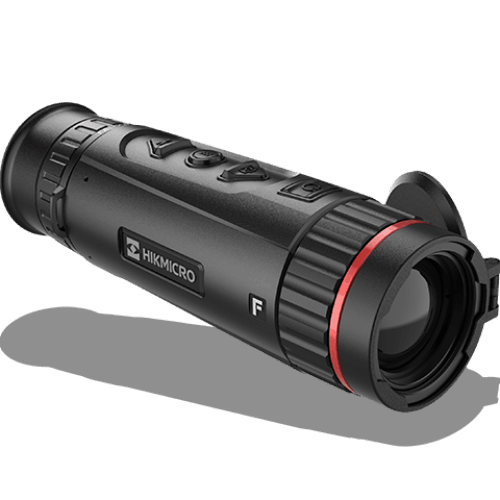

HIKMICRO
FALCON FQ35 2.0
Thermal Monocular

(List Price € 2412,00)
Special Offer € 2135,00

Thermal imaging sensor resolution in pixels: 640 x 512
Sensor type: VoX
Pixel pitch: 12 µm
NETD ≤15 mK
Focal length: 35 mm/F1.0
Frame rate in Hz: 50 Hz
Magnification: 1.9x
Digital zoom: 1-8x
Detection range in m: 1,800
Field of view (HxV) in degrees: 12.5° x 10.0°
Field of view (HxV) in m / 100 m: 21.9 x 17.5
Screen resolution in pixels: 1,920 x 1,080
Screen type: OLED
Integrated Wi-Fi interface: Yes
Integrated Bluetooth interface: No
Integrated image storage: Yes
Integrated video storage: Yes
Livestream possible: Yes
Integrated laser rangefinder: No
Dimensions (LxWxH) in mm: 191 x 70 x 64
Weight (g) 486

Order

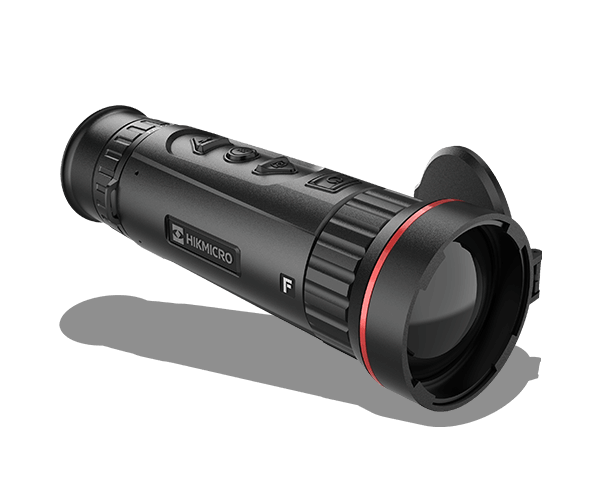

HIKMICRO
FALCON FQ50 2.0
Thermal Monocular

(List Price € 2771,00)
Special Offer € 2450,00

Thermal imaging sensor resolution in pixels: 640 x 512
Sensor type: VoX
Pixel pitch: 12 µm
NETD ≤15 mK
Focal length: 50 mm/F1.0
Frame rate in Hz: 50 Hz
Magnification: 2.7x
Digital zoom: 1-8x
Detection range in m: 2,600
Field of view (HxV) in degrees: 8.8° x 7.0°
Field of view (HxV) in m / 100 m: 15.4 x 12.2
Screen resolution in pixels: 1,920 x 1,080
Screen type: OLED
Integrated Wi-Fi interface: Yes
Integrated Bluetooth interface: No
Integrated image storage: Yes
Integrated video storage: Yes
Livestream possible: Yes
Integrated laser rangefinder: No
Dimensions (LxWxH) in mm: 205 x 70 x 83
Weight (g) 570

Order

HIKMICRO
HABROK HX50L
Thermal imaging binocular, day and night vision, with rangefinder
(List Price € 4.230,00)
Special Offer € 3.400,00

Technical Data
Thermal Module:
Sensor, resolution: 640 × 512
Frame Rate: 50 Hz, pixel pitch: 12 μm
Detection Range: Up to 2,600 m
Magnification: 4.3x to 25.8x (6x)
Optical Module:
Image Sensor: 1.88" progressive scan CMOS, resolution: 3,840 × 2,160
Magnification: 5.5x to 22.0x (4x)
Minimum Focusing Distance: 3 m
Image Display:
OLED Display: 0.49 inches, 1920 × 1080
Palettes: Black Hot, White Hot, Red Hot, Fusion
System Functions:
Video Recording, Snapshot, Audio Recorder
GPS, Hotspot, Hot Track, Picture-in-Picture
Power Supply:
Rechargeable lithium-ion battery, battery life: ≥7 hours
Type-C power supply, external power supply supported
General Information:
Protection class: IP67, weight: 975 g, dimensions: 142.9 mm × 79.7 mm × 230.5 mm
Operating temperature: -30°C to +55°C
Laser rangefinder:
Maximum range: 1000 m, accuracy: ±1 m
Delivery Contents:
1 x HIKMICRO HABROK Pro HQ50L
1 x rechargeable lithium-ion battery
1 x USB-C cable
1 x user manual

Order

HIKMICRO
HABROK HX60L PRO
Thermal imaging binocular, day and night vision, with rangefinder
(List Price € 6.345,00)
Special Offer € 5.000,00

Sensor resolution: 1280 × 1024
Frame rate: 25 Hz, pixel pitch: 12 μm
Detection range: Up to 3100 m
Magnification: 2.6x to 26.0x (10x)
Optical module:
Image sensor: 1.88" progressive scan CMOS, resolution: 3840 × 2160
Magnification: 5.5x to 22.0x (4x)
Minimum focusing distance: 3 m
Image display:
OLED display: 0.49 inches, 1920 × 1080
Palettes: Black Hot, White Hot, Red Hot, Fusion
System functions:
Video recording, snapshot, audio recorder
GPS, Hotspot, Hot Track, Picture-in-Picture
Power supply:
Battery Rechargeable lithium-ion battery, battery life: up to 7 hours
Type-C power supply, external power supply supported
General information:
Protection class: IP67, weight: 1050 g, dimensions: 152.8 mm × 81.95 mm × 231.5 mm
Operating temperature: -30°C to 55°C
Laser rangefinder:
Maximum range: 1000 m, accuracy: ±1 m
Box contents:
1 x HIKMICRO HABROK Pro HX60L
1 x rechargeable lithium-ion battery
1 x USB-C cable
1 x user manual

Order
